DA/DK Series

Industrial Gear Units

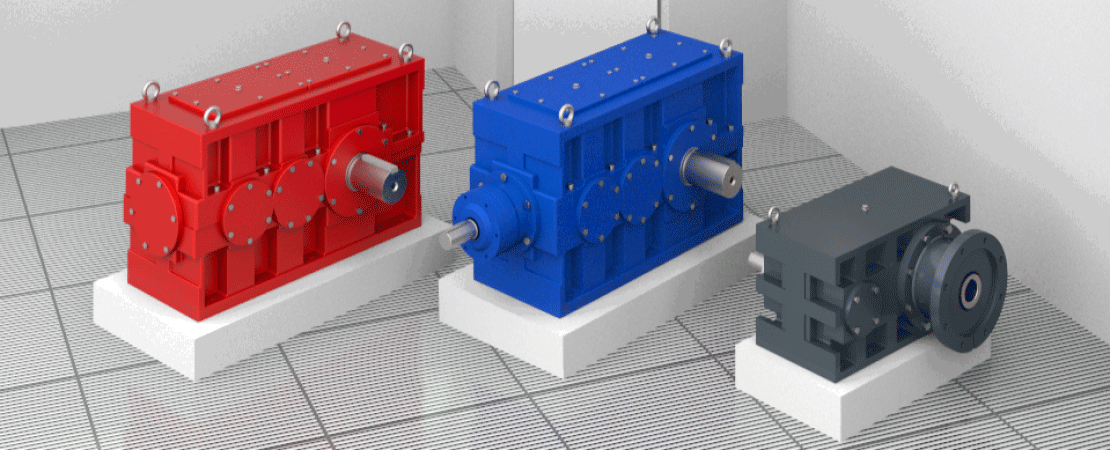

DA/DK Series - Industrial Gear Units


DA series helical and DK series bevel-helical gearboxes are suitable for heavy duty industrial applications. They are designed to transmit high output torques in optimized dimensions. They enable wide range of ratios with single to quadruple reduction options.

Thanks to their rigid structure, they are suitable to operate safely even in harshest conditions. Housing material is GGG40 cast iron. Gears are produced from high quality, case hardened steel. Heat treatment process is applied to obtain 58-60 HRC surface hardness. The gears are precision ground to ensure a quiet and low vibration operation.

The gearboxes are available with hollow shaft or solid shaft. According to operating conditions, they are offered with optional accessories such as cooling systems, forced lubrication systems or oil expansion tanks. Back-stops, shrink discs and IEC B5 motor flanges are also available as optional accessorries. Special oil seal options are applied for dusty operation conditions.

Dişsan also offers complete solutions with motor, input coupling, gearbox and output coupling set on a steel base frame.

For extruder applications, special extruder type right or left output options are available.

Input Options:

Output Options:

  • Hollow output shaft
  • Solid output shaft (single or double)
  • Output flange

Applications: Conveyors, Elevators, Mills, Cranes, Washing Units, Mixing Units, Extruders

Industries: Mining, Construction, Metal Processing, Cement, Concrete Plants, Sand and Gravel Plants, Ceramics and Glass, Plastics

Features

Advantages

Features

  • Ratio: 1.2/1 - 450/1
  • Nominal Torque: 1800 - 300,000 Nm
  • Options:
    • Back-stop
    • Electromagnetic brake
    • Shrink disc
    • Cooling system
    • Forced lubrication
    • Expansion tank
    • Auxiliary drive
    • Special oil seals

Advantages

  • Monoblock robust housing
  • High efficiencies
  • Wide ratio options
  • High torque values
  • Easy mounting
  • Standart IEC B5 motor connections
  • Long life bearings
  • High quality oil seals
Document Name Size Download
Catalogue - DA/DK Series 877,28 KB Download

DA/DK Series Types

DA2

DK3

DAE2
